تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Dingang
إصدار الشهادات: SGS,ITS,BV
رقم الموديل: دينغانغ - PPAL
شروط الدفع والشحن
الحد الأدنى لكمية: 1000 كجم / 1 طن متري
الأسعار: قابل للتفاوض
تفاصيل التغليف: عبوات جديرة البحر مع منصة نقالة خشبية
وقت التسليم: في غضون 30-45 يومًا
شروط الدفع: L/C عند البصر أو 30 ٪ T/T مسبقًا كإيداع ، و 70 ٪ رصيد مقابل نسخة B/L
القدرة على العرض: 5000 طن / شهر
اسم: |
خط القناة المكعب من الألومنيوم |
سبيكة: |
3004 |
سماكة: |
1.5mm |
عرض: |
1220mm |
سبيكة أم لا: |
سبيكة |
تطبيق: |
مجال الإعلان |
عينة: |
متاح |
سمك الطلاء: |
PVDF: لا يقل عن 25um PE: لا يقل عن 18UM |
قابل لإعادة التدوير: |
نعم |
اسم: |
خط القناة المكعب من الألومنيوم |
سبيكة: |
3004 |
سماكة: |
1.5mm |
عرض: |
1220mm |
سبيكة أم لا: |
سبيكة |
تطبيق: |
مجال الإعلان |
عينة: |
متاح |
سمك الطلاء: |
PVDF: لا يقل عن 25um PE: لا يقل عن 18UM |
قابل لإعادة التدوير: |
نعم |

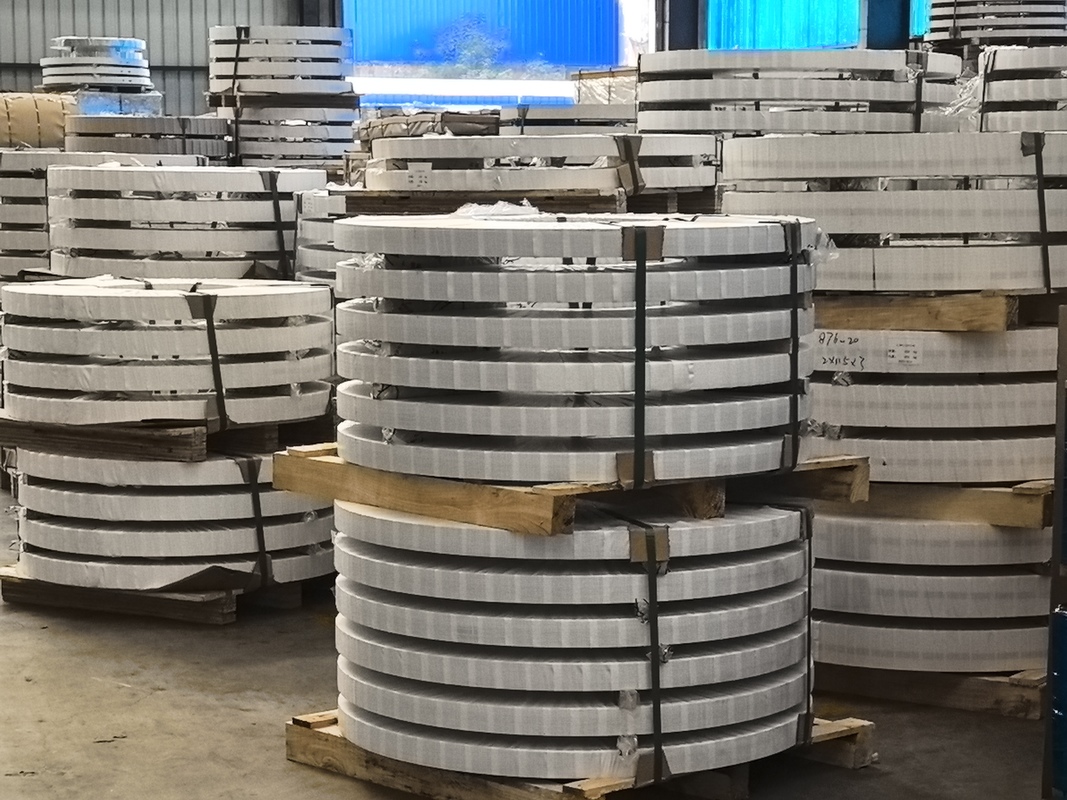

AA3004 H24 1.5mm channel letter aluminum coil is a premium material tailored for crafting high-performance store signboards, specifically designed to form "channel letters"—three-dimensional, hollow illuminated letters that serve as the focal point of retail and commercial signage. Blending the enhanced strength of 3004 aluminum alloy, the balanced workability of H24 temper, and the optimal 1.5mm thickness, it delivers durability, precision, and visual appeal, making it a top choice for storefront branding.
![]()
| Product | Color Coated Aluminum Sheet/Prepainted Aluminium Coil |
| Thickness | 0.1-1.6mm |
| Width | 30-1600mm |
| Material | 1050, 1060, 1100, 3003, 3004, 3105, 5052, 5005, 5754, 5083, 6061,8081 etc |
| Temper | O, H12, H14, H16, H18, H24, H26, H32, H34, etc |
| Inner Diameter | 405mm,505mm,150mm,etc. |
| Color | RAL, Pantone Color Or As Alient's Demand |
| Coating thickness | PVDF Paint Coating: Not Less Than 25um |
| PE Paint Coating : Not Less Than 18um | |
| Packing | Export Standard Wooden Pallets (Eye To Wall,Eye To Sky) |
| Payment Terms | L/C at sight or 30% T/T in advance as deposit, and 70% balance against the B/L copy. |
| MOQ | 3 Tons Per Specification |
| Delivery Time | Within 30-45 Days |
| Loading Port | Shanghai,Ningbo,Qingdao,Tianjin Port and Etc |
| Application | Aluminum Roofing,ACP,Roller Shutter Window,Roller Shutter Door,Aluminum Ceiling,Aluminum Grilling,Aluminum Downspout System,Home Appliance's Plate, body tank of cold chain truck,high speed rail,aluminum pull ring,food packaging,outer packing case of capacitor,external contour of letter channel |
![]()
1. Enhanced Strength for Structural Stability
2. Superior Formability
3. Excellent Corrosion Resistance
4. Lightweight for Easy Installation
5. Surface Treatment Versatility
6. Cost-Effective Durability
